HAGOE GZDW DC Power Supply Panel provides reliable DC auxiliary power for substations, power plants and industrial systems, with 110V/220V output, modular charging and intelligent monitoring.
HAGOE GZDW DC Power Supply Panel is an integrated DC auxiliary power system designed for substations, power plants, industrial facilities and critical electrical infrastructure. Developed by HAGOE Electric Technology Co., Ltd., a power supply equipment manufacturer established in 2008, the GZDW series combines AC/DC conversion, battery charging management, DC distribution, insulation monitoring and intelligent system supervision in one cabinet.
Unlike a simple DC charger cabinet, the GZDW system is designed as a complete DC operating power solution. It provides stable DC power for relay protection, switchgear operation, automation equipment, communication systems and other secondary circuits that require continuous power availability.
The system supports multiple battery configurations, including:

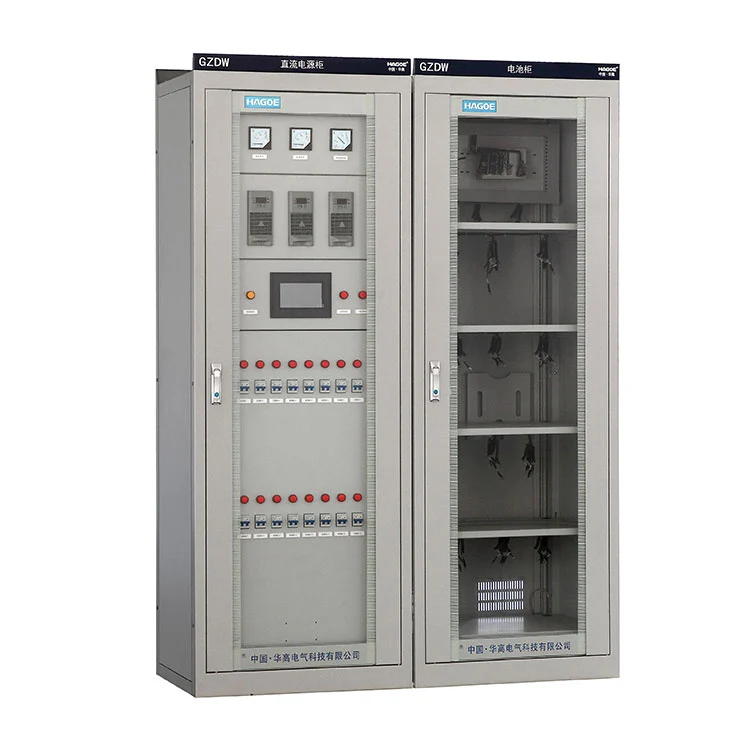

GZDW Lead-Acid DC Power Supply Panel

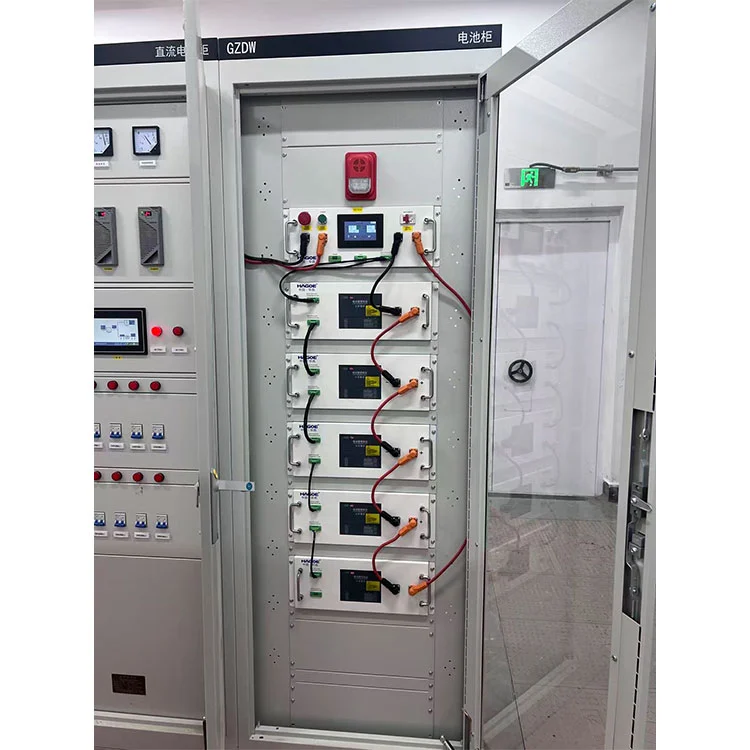

GZDW Lithium DC Power Supply Panel

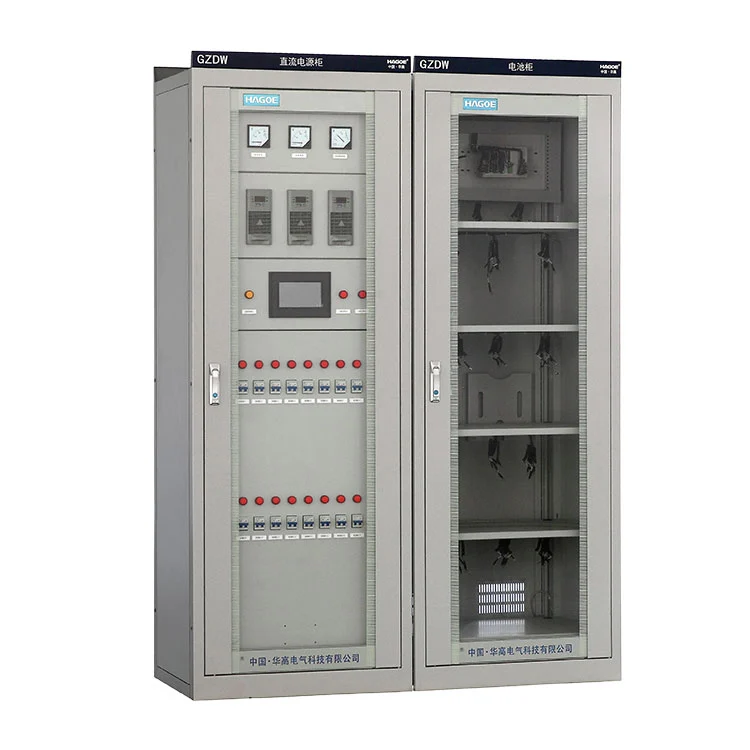

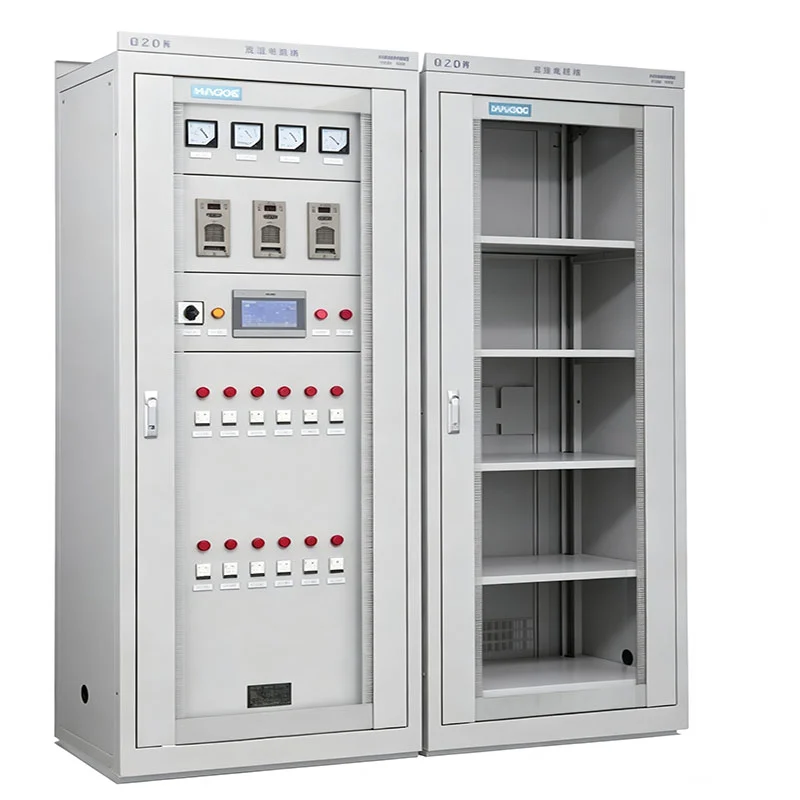

GZDW Ni-Cd DC Power Supply Panel
It is also configurable as 48V DC charger cabinets, 110V DC charger cabinets and 220V DC charger cabinets according to the voltage requirements of different applications.
With modular charging units, intelligent monitoring and multiple communication options, the GZDW series provides a flexible DC power platform for domestic and overseas EPC projects.
In modern substations and industrial electrical systems, DC power reliability directly affects the operation of protection relays, breakers and automation equipment.
The GZDW DC Power Supply Panel integrates the following functional sections:
AC input and rectification
The system converts AC380V input power into stable DC output through high-efficiency charging modules. Multiple charging modules can operate in parallel to improve redundancy and maintenance flexibility.
Battery charging and management
The system supports float charging, equalizing charging and battery management functions. Different battery types can be selected according to project requirements, including lead-acid, lithium and Ni-Cd batteries.
DC distribution
The DC output is distributed through independent feeder circuits with protection and monitoring functions, providing reliable power for secondary equipment.
System supervision
The intelligent monitoring unit continuously records operating conditions, alarms and historical events, helping operators identify system status and maintenance requirements.
The HG-E5 (7 inch) and HG-E6 (10.4 inch) monitoring systems represent HAGOE's evolution from traditional key-operated DC systems to intelligent industrial touch control platforms.
The monitoring system supports different DC system architectures:
Single battery with single charger, Single battery with double chargers, Double batteries with single charger, Double batteries with double chargers
The industrial-grade color touch screen provides a clearer interface for operation, parameter setting and fault analysis.
Main monitoring functions include:
Charging module monitoring, Battery inspection, Branch insulation monitoring, Switch status monitoring, Historical fault recording, Communication management
The system can store more than 500,000 historical fault and operation records, providing valuable data support for maintenance analysis.
Available communication interfaces:
RS232
RS485
RJ45 Ethernet
Optional communication protocols include:
MODBUS
IEC61850
CDT
Supporting Different DC Power Supply Requirements
The GZDW series can be configured with different battery technologies according to application requirements.
The GZDW Lead-Acid DC Power Supply Panel remains a widely used configuration for conventional substations and industrial applications due to its mature technology, stable performance and cost advantage.
The GZDW Lithium DC Power Supply Panel is suitable for projects requiring higher energy density, reduced maintenance requirements and compact installation space.
Battery management system (BMS) integration can be considered according to project specifications.
The GZDW Ni-Cd DC Power Supply Panel can be applied in demanding environments where wide temperature tolerance and long service life are important factors.
HAGOE can recommend the appropriate battery configuration based on voltage level, installation environment, operating conditions and maintenance requirements.
| Parameter | Specification |
|---|---|
| Rated Input Voltage | AC 380V ±20% |
| Rated Frequency | 50Hz ±10% |
| Rated Output Voltage | DC 110V / DC 220V |
| Output Voltage Range | DC 90–130V / DC 180–260V |
| Charging Modules | HG-T, HG-Z, HG-F |
| Charging Module Current | 10A, 20A, 30A; 5A, 10A, 20A, 30A depending on module |
| Battery Inspection Module | HG-X, up to 4 modules |
| Branch Insulation Monitoring | HG-J, up to 16 modules |
| Inverter Module | HG-N1K, 1K / 2K / 3K / 5K |
| Switching Value Module | HG-K, up to 16 modules |
| Monitoring Display | HG-E5 7-inch / HG-E6 10.4-inch |
| Communication Interfaces | RS232 / RS485 / RJ45 |
| Communication Protocols | MODBUS, IEC61850, CDT optional |
| Historical Records | More than 500,000 fault and operation records |
| Cabinet Dimensions | 800 × 600 × 2260 mm / 2360 mm |
| Cabinet Configuration | Non-standard dimensions available on request |
For a project-specific configuration, the final charging capacity, battery capacity, number of feeder circuits and monitoring modules should be determined from the DC load list and system design rather than selected from the nominal cabinet specification alone.

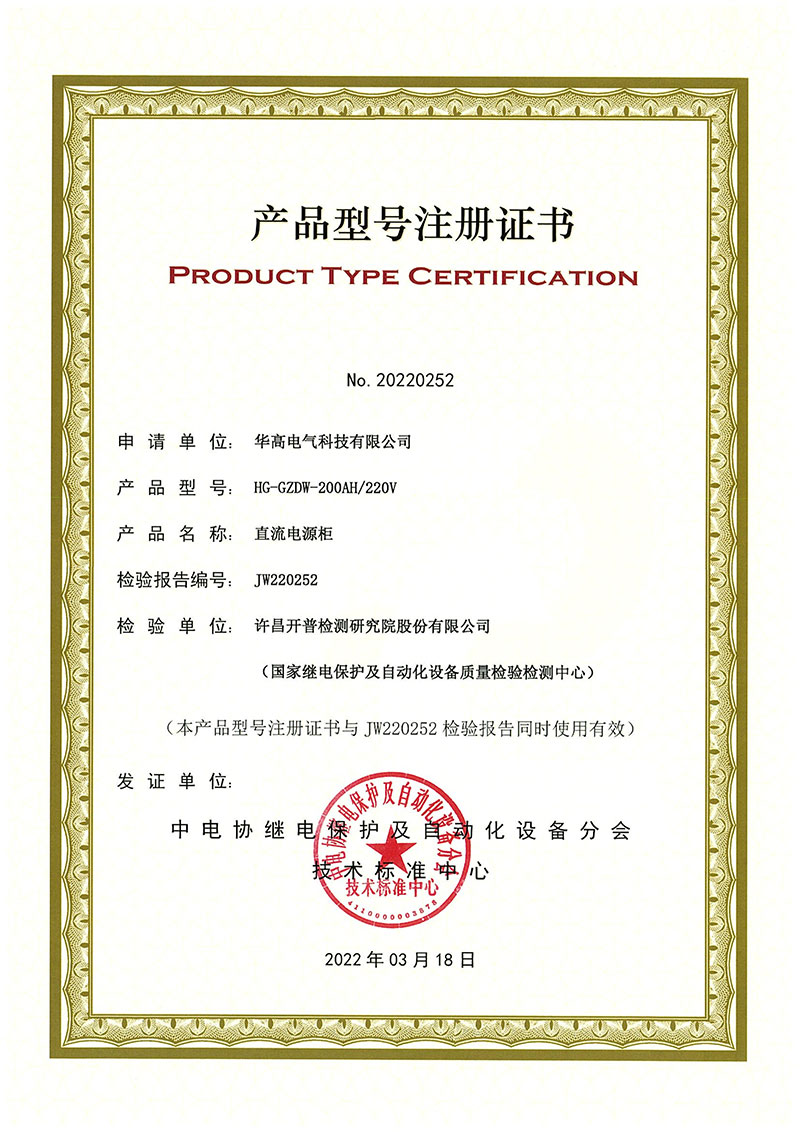

The HG-GZDW-200AH/220V DC Power Supply Panel has been subjected to type testing by Xuchang Kaipu Testing and Research Institute Co., Ltd. The test sample was identified as AC380V / DC220V / 40A, with one unit submitted for testing.
The test was conducted from March 9 to March 14, 2022, under report No. JW220252. The testing was classified as a type test, with the test basis including DL/T 459-2017, Electric Power DC Power Supply Equipment, together with GB/T 17626.18-2016 for damped oscillatory wave immunity testing.
According to the report conclusion, the tested items met the requirements of the applicable testing standards.
| Item | Test Report Information |
|---|---|
| Product | DC Power Supply Panel |
| Model | HG-GZDW-200AH/220V |
| Sample Specification | AC380V / DC220V / 40A |
| Sample Quantity | 1 unit |
| Report No. | JW220252 |
| Test Type | Type Test |
| Test Period | March 9–14, 2022 |
| Test Standard | DL/T 459-2017 |
| EMC Test Basis | GB/T 17626.18-2016 |
| Testing Laboratory | Xuchang Kaipu Testing and Research Institute Co., Ltd. |
| Test Conclusion | Tested items met the applicable requirements |
This report provides model-specific testing evidence for the HG-GZDW-200AH/220V configuration and can be referenced during technical evaluation and project procurement. The test report should be considered together with the current product configuration and project-specific technical requirements.
Test Report Summary
The HG-GZDW-200AH/220V DC Power Supply Panel passed type testing at Xuchang Kaipu Testing and Research Institute Co., Ltd. in March 2022. All tested items met the requirements of DL/T 459-2017 and GB/T 17626.18-2016.
Report No. JW220252 is available for technical reference and project procurement documentation.
Built Around HAGOE's DC Power Equipment Manufacturing Experience
HAGOE Electric Technology Co., Ltd. was established in 2008 in Wenzhou, China, with manufacturing experience covering DC power supply cabinets, AC/DC integrated power systems, UPS systems, switchgear, substations and low-voltage electrical assemblies.
For GZDW projects, manufacturing involves more than cabinet assembly. The charging modules, monitoring components, protection devices, internal wiring and DC distribution sections need to work as one coordinated system.
Production quality control covers key stages including:

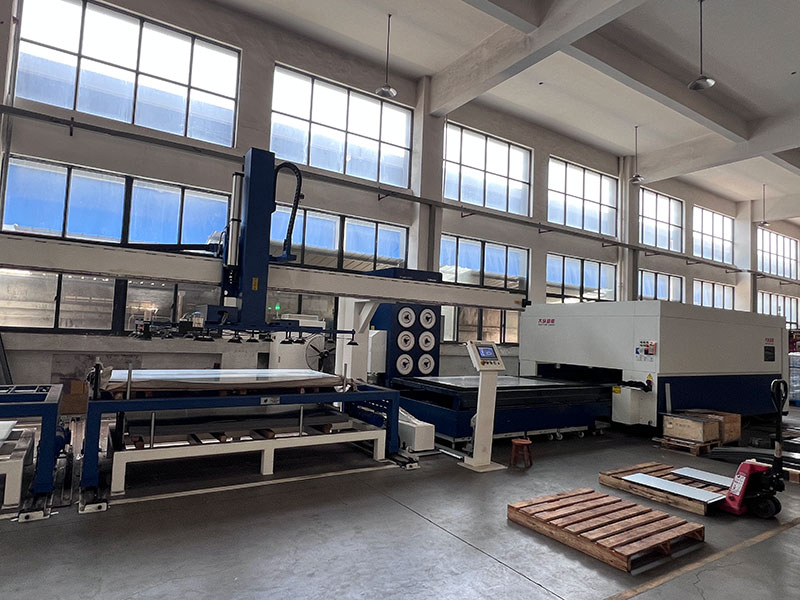

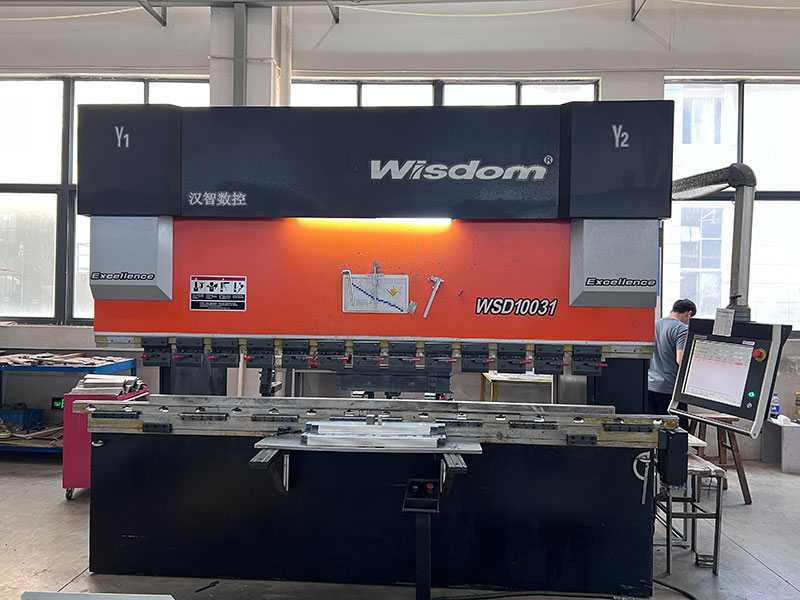

Cabinet fabrication and finishing — Sheet-metal processing, enclosure assembly and surface treatment are completed according to the approved cabinet drawings.
Electrical assembly — Busbars, charging modules, monitoring units, protection components and terminals are installed according to the approved electrical configuration.
Wiring verification — Internal wiring, terminal identification and circuit connections are checked against the approved drawings before testing.
Functional inspection — Charging functions, monitoring interfaces, alarm signals, communication interfaces and relevant switching functions are verified according to the project requirements.
HAGOE operates under ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certified management systems. The certified manufacturing scope covers DC power supply cabinets and other electrical power equipment, providing a documented quality-management basis for project production.
The GZDW series is primarily intended for applications where DC power must remain available for protection, control and auxiliary equipment.
The system can provide DC operating power for relay protection, circuit breaker operation, automation equipment, signaling and other secondary systems. 110V and 220V DC configurations cover common substation DC voltage requirements.
Factories, mines, metallurgy facilities, chemical plants and other industrial sites can use the GZDW system as a dedicated DC supply for control and protection circuits.
Rail transit and other infrastructure projects can require centralized DC power for control, signaling and communication-related equipment. The modular monitoring architecture allows the system to be configured according to project requirements.
For applications using lower-voltage DC systems, HAGOE can develop corresponding configurations such as 48V DC charger cabinets, subject to the required battery and charging specifications.
The final application configuration depends on the DC load, battery autonomy requirement, charging capacity and project protection scheme.
Choosing a GZDW supplier is not only about obtaining a cabinet with the correct voltage label. For an engineered DC power system, the supplier needs to understand the relationship between the charger, battery, DC distribution, monitoring and site application.
HAGOE has been manufacturing power supply and electrical equipment for nearly two decades, with its product scope covering DC power systems and related electrical equipment.
The GZDW platform can be configured for lead-acid, lithium or Ni-Cd battery systems according to project requirements.
Charging modules, battery capacity, feeder circuits, monitoring modules, communication interfaces and cabinet dimensions can be specified according to the customer's electrical design.
The HG-E5 and HG-E6 monitoring systems provide an integrated interface for system supervision, historical records and communication.
HAGOE can work from customer SLDs, load lists and technical specifications to prepare customized configurations and documentation for project procurement.
HAGOE operates under ISO 9001, ISO 14001 and ISO 45001 certified management systems, supporting controlled manufacturing and documented quality procedures.
HAGOE Electric Technology Co., Ltd.
Established in 2008, HAGOE is a professional manufacturer of DC power supply systems, low-voltage switchgear and related electrical equipment. With ISO 9001, ISO 14001 and ISO 45001 certified management systems, HAGOE provides reliable power solutions for substations, industrial facilities and infrastructure projects worldwide.
The GZDW platform can be configured for lead-acid, lithium and Ni-Cd battery systems. Battery selection should consider DC load, required backup time, ambient temperature, maintenance conditions and project specifications.
Yes. HAGOE can provide configurations for different DC system requirements. The supplied data specifically covers DC110V and DC220V, while 48V DC charger cabinets can be engineered according to the required charging and battery specifications.
A charger cabinet primarily focuses on AC/DC conversion and battery charging. The GZDW is an integrated DC power system that can combine charging modules, batteries, DC distribution, insulation monitoring, battery inspection, alarms and system communication.
Yes. The charging capacity, battery configuration, feeder circuits, monitoring modules, communication functions and cabinet dimensions can be configured according to the project's SLD, load list and technical requirements.
Depending on the selected configuration, the monitoring system can supervise charging modules, battery status, branch insulation, switching signals, alarms and operating records. It can also communicate with external systems through RS232, RS485 or RJ45 interfaces.
Yes. MODBUS, IEC61850 and CDT are available as communication protocol options. The actual interface and protocol should be confirmed according to the customer's SCADA or automation system requirements.
The charging capacity should be determined from the DC load, battery capacity, charging time requirement and system redundancy. HAGOE can recommend the appropriate charging-module quantity and current rating after reviewing the project's DC load data.
For an engineering quotation, the most useful information includes the DC system voltage, load list, battery type and capacity, required backup time, number of DC feeders, monitoring requirements and communication protocol. An SLD or technical specification is preferable where available.
