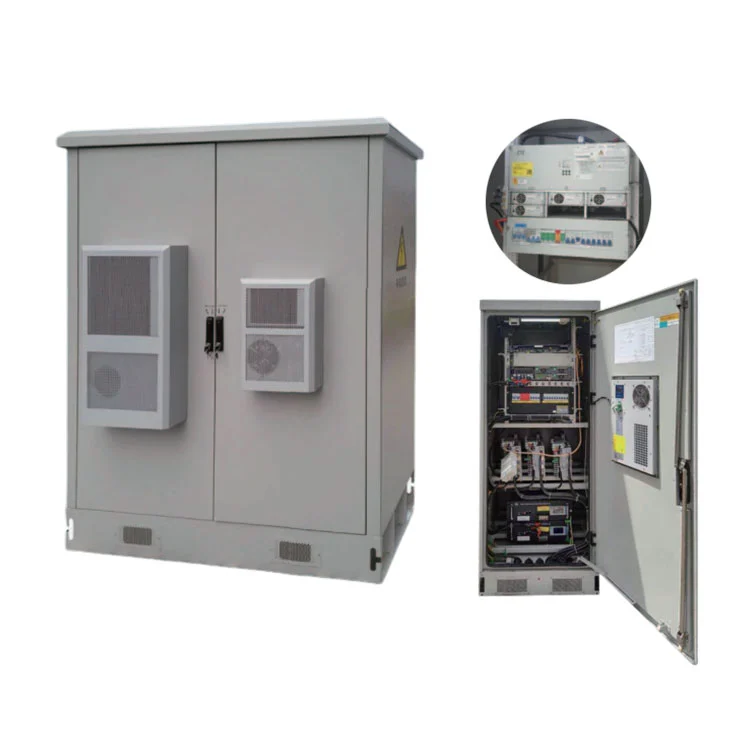

The HAGOE H5GY Series 5G Outdoor DC Power Supply Panel integrates AC/DC distribution, 48V DC power conversion, battery management, monitoring, thermal management and surge protection in an outdoor cabinet. With 200A and 300A configurations, IP55 protection, TCP/IP communication and remote monitoring, it is designed for 5G base stations, FTTx, data communication and access equipment where stable DC power is required.
A 5G Outdoor DC Power Supply Panel is more than a conventional DC panel installed outdoors. Telecom power equipment must maintain stable DC output while dealing with temperature fluctuations, moisture, dust, lightning surges, battery aging, limited installation space and remote maintenance requirements.
The HAGOE H5GY Series follows a one-cabinet integrated architecture, combining AC/DC distribution, rectifier power, battery management, monitoring, thermal management and protection functions within one outdoor cabinet. This configuration is intended to simplify site installation and support the continuous operation of 5G, 4G, FTTx and other communication equipment.
HAGOE H5GY Series — Integrated outdoor DC power solution for 5G/4G telecom sites.
Combines AC/DC distribution, rectifier, battery management, monitoring and thermal management in one IP55 cabinet.
H5GY Series Pole-Mounted 48V DC Power Supply is designed around the 48V DC power architecture commonly used by telecom equipment. The system can integrate the H48S series embedded DC48V power supply, monitoring module, rectifier modules, AC/DC distribution and battery system according to the required configuration.
For telecom contractors and system integrators, this means the power cabinet can be configured around the actual load profile instead of forcing every project into a fixed configuration.
The equipment compartment and battery compartment adopt air-duct isolation technology to separate the operating environments of power electronics and batteries. This helps reduce the influence of heat generated by the power section on the battery compartment.
The system can also be configured with environmental monitoring and temperature-control functions. For projects exposed to high ambient temperatures or significant day/night temperature variations, thermal management becomes an important part of battery and system reliability.
The integrated monitoring architecture supports functions such as battery capacity calculation, temperature compensation, online battery testing, automatic voltage regulation and current limiting.
These functions allow operators to monitor the operating condition of the DC system and battery rather than relying only on local inspection. Battery-related parameters can be incorporated into the overall monitoring system according to the selected configuration.
The system provides a sleep energy-saving function for communication sites where load conditions vary over time. The purpose is to reduce unnecessary power consumption while maintaining the required power supply for communication equipment.
This is particularly relevant for distributed telecom sites where many cabinets operate continuously and energy consumption accumulates across a large number of locations.
| Items | Technical Parameters | Required / Optional |
|---|---|---|
| Rated Input Voltage | AC 380 V ±20% | — |
| Rated Frequency | 50 Hz ±10% | — |
| Rated Output Voltage | DC 110 V / DC 220 V | — |
| Output Voltage Range | DC 90–130 V / DC 180–260 V | — |
| Charging Module | HG-T, HG-Z, HG-F | Required |
| Charging Module Current | 10 A, 20 A, 30 A / 5 A, 10 A, 20 A, 30 A | Required |
| Battery Inspection Module | HG-X: Up to 4 modules (≤4) | Required |
| Branch Insulation Module | HG-I: Up to 16 modules (≤16) | Optional |
| Inverter Module | HG-N1K (1K, 2K, 3K, 5K) | Optional |
| Switching Value Module | HG-K: Up to 16 modules (≤16) | Optional |
| Cabinet Body Size | 800 × 600 × 2260 mm (or 2360 mm) | Non-standard and customizable |
| Battery Monitoring Module | Up to 32 modules (≤32) | Optional |
The configuration can incorporate monitoring modules, rectifier modules, AC/DC distribution, dry contacts and rack structures according to project requirements.
The distribution section can support up to 24P AC/DC circuit-breaker installation positions, with specific AC and DC allocation depending on the selected cabinet configuration.
The monitoring and control architecture can support 6 inputs and 6 outputs with customizable assignment, together with AC power measurement, multi-user power consumption detection, multi-level power-down control and TCP/IP communication.
Engineering Note: Final rectifier quantity, battery capacity, input/output configuration and circuit-breaker arrangement should be confirmed against the project's load calculation, backup-time requirement and telecom equipment configuration before quotation.
Before selecting a 5G Outdoor DC Power Supply Panel, procurement and engineering teams should confirm five parameters:
Load capacity: Determine the total continuous DC load and expected future expansion before selecting the 200A or 300A configuration.
Backup requirement: Battery capacity should be calculated from the required backup time, actual load and local operating conditions rather than selected only by cabinet capacity.
Distribution arrangement: Confirm the required AC/DC circuit-breaker positions, number of inputs and outputs, and whether multiple load groups require staged power-down.
Communication protocol: Confirm whether the site management platform requires TCP/IP, RS485, RS232 or dry-contact alarm interfaces.
Environmental conditions: Ambient temperature, humidity, solar exposure, installation location and maintenance conditions should be considered when selecting the cabinet thermal-management configuration.
This project-based selection method helps avoid both undersized systems and unnecessary equipment capacity.
For standard wall-mounted or compact DC systems, HAGOE provides English installation documentation and remote technical guidance.
For medium-sized DC panels and complete electrical cabinets, engineers can provide installation and commissioning support according to the project arrangement. For larger substation, photovoltaic or EPC projects, HAGOE can prepare a dedicated installation and commissioning plan and coordinate equipment commissioning with the overall construction schedule.
Installation support includes operating training, commissioning guidance and remote troubleshooting, helping the customer's maintenance team become familiar with routine operation.
The H5GY Series Outdoor Telecom Power Cabinet / IOPU can be used as an outdoor DC power platform for cellular communication sites where equipment requires stable 48V DC power and battery backup.
For distributed fiber-access and communication nodes, the integrated cabinet design can combine power conversion, battery backup, monitoring and distribution within a compact outdoor installation.
The system can support communication and access equipment requiring a centralized 48V DC power source with remote monitoring and alarm interfaces.
IP55 protection, environmental monitoring, battery management and anti-theft options make the system suitable for sites where regular manual inspection is limited.
For existing 3G/4G sites being upgraded to 5G, the system can be configured according to the new load requirement, distribution arrangement and battery backup requirements.
HAGOE has been engaged in electrical equipment manufacturing since 2008, with product coverage extending from DC power systems and UPS/EPS to power distribution, automation control and new energy electrical equipment. This allows telecom projects to be coordinated with related electrical systems through one engineering team.
The company operates its own production base and integrates R&D, engineering, manufacturing, testing and export services. Standard products can be supplied alongside customized cabinet dimensions, distribution arrangements, communication interfaces and monitoring configurations.

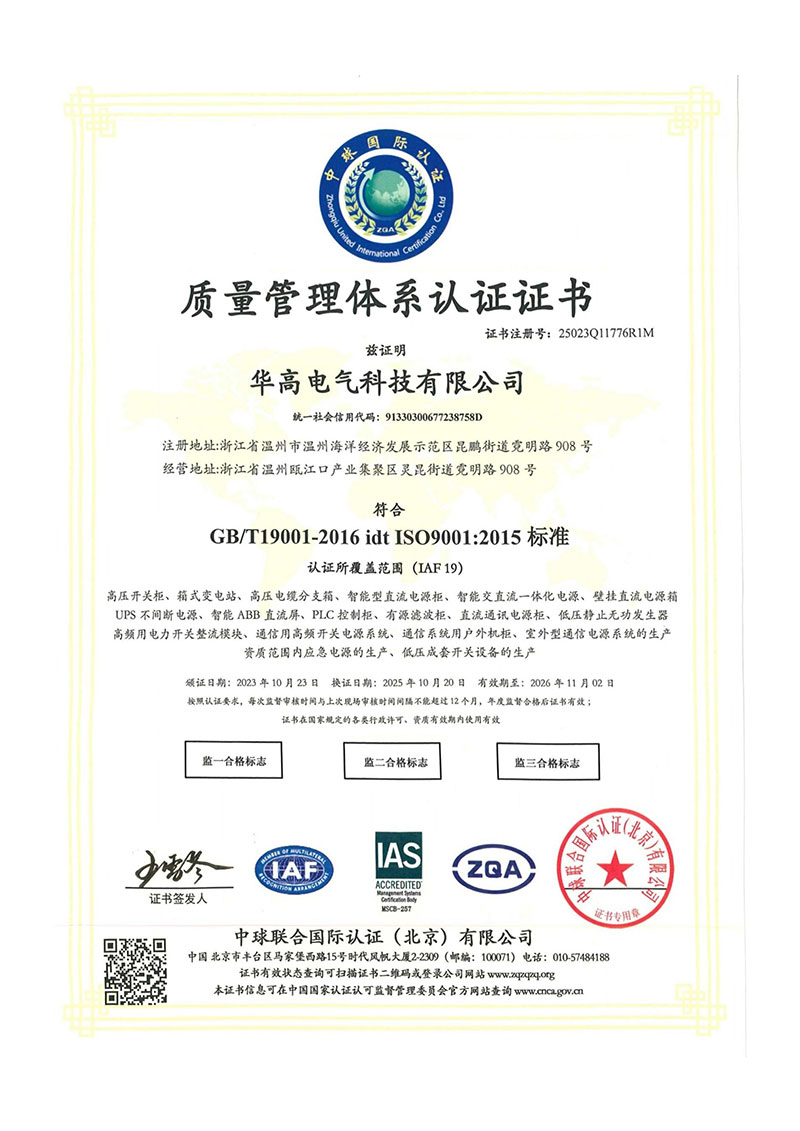

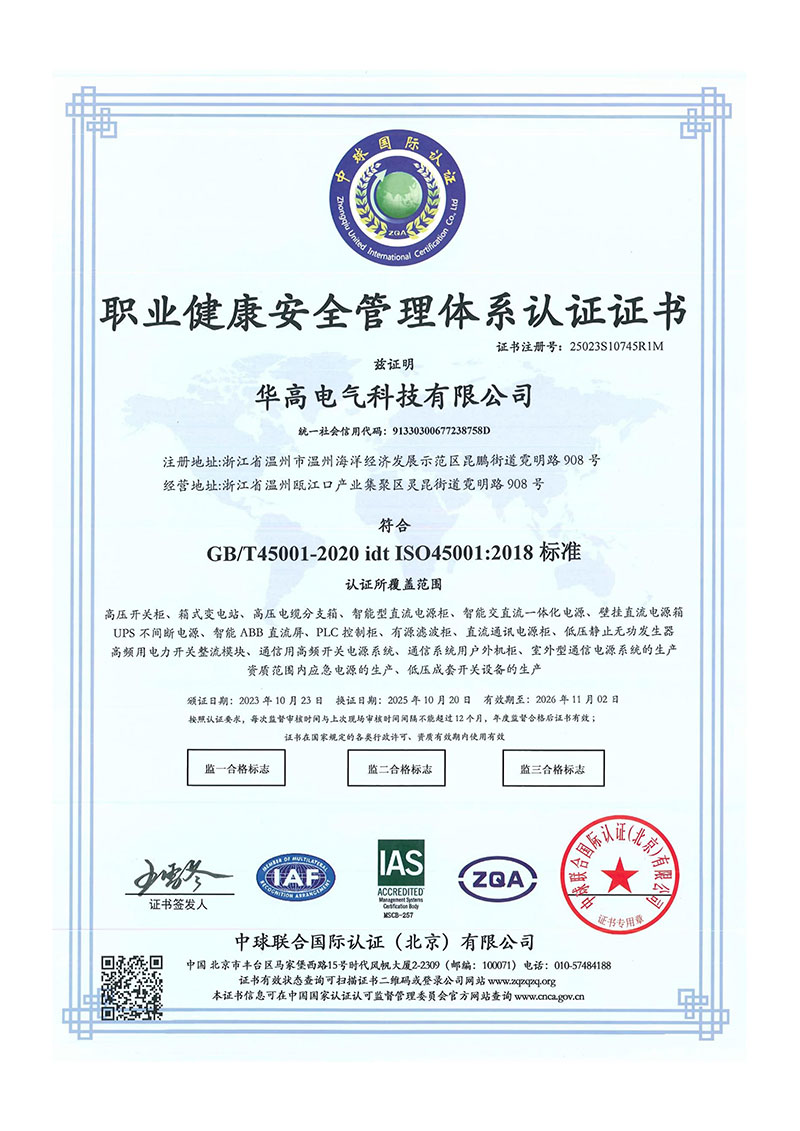

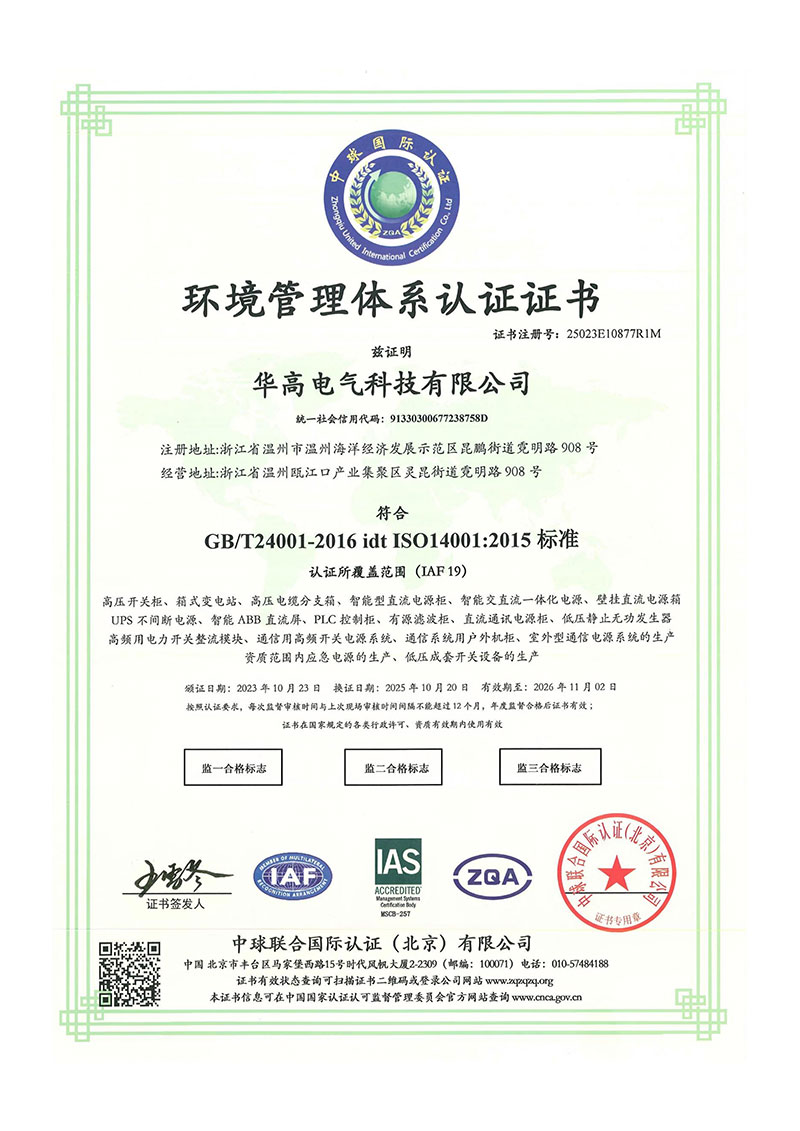

HAGOE has obtained 34+ national patents and maintains certifications and management systems including ISO9001, ISO14001, ISO45001, CCC, CE, CB and RoHS, according to the applicable product and certification scope.
For international procurement, technical documents can include product manuals, electrical drawings, inspection reports, certification documents, packing lists and installation instructions.
For telecom EPC contractors, distributors and system integrators, HAGOE provides technical selection, customized solution design, quotation support, production tracking, inspection documentation, logistics coordination and remote commissioning support.
For standard selection and basic power distribution schemes, the engineering team can normally provide a preliminary configuration and quotation within 1 working day. More complex customized projects are evaluated according to their technical scope.
HAGOE Electric Technology Co., Ltd. was established in 2008 in Wenzhou, Zhejiang, China, with manufacturing and engineering capabilities covering power distribution, power electronics, new energy and intelligent power systems.
For outdoor telecom power systems, production includes cabinet fabrication, electrical assembly, monitoring-system integration, system commissioning and final inspection. The production base is equipped with TRUMPF laser cutting machines, AMADA CNC bending machines, automated turret punching equipment, SMT production lines and intelligent aging test systems, together with equipment for EMC, IP protection and environmental testing.
The company operates under ISO9001, ISO14001 and ISO45001 management systems and develops products in accordance with applicable GB and IEC requirements. Project-specific inspection reports, certificates and technical documentation can be supplied according to customer requirements.
The H5GY Series Outdoor Integrated DC Power System can be adapted for telecom operators, EPC contractors, distributors and system integrators that require a project-specific configuration.
Customization can cover cabinet structure, appearance, logo, packaging, distribution arrangement, monitoring interfaces, communication configuration and selected electrical components. HAGOE also provides OEM/ODM services for international customers and can coordinate customized technical documentation with the equipment supplied.
Yes. The H5GY Series 5G Outdoor DC Power Supply Panel is specifically designed for outdoor communication power applications including 5G, 4G, FTTx, data communication and access equipment. The 48V DC architecture, battery integration, monitoring and outdoor cabinet protection make it suitable for telecom site power infrastructure.
The supplied H5GY/H48S configuration information includes 200A and 300A system configurations. The final capacity should be selected according to the actual DC load, expansion requirement and battery backup design.
The system architecture supports a battery compartment and battery management functions. The actual battery type, capacity and quantity should be confirmed according to the required backup time and project load calculation.
Yes. Depending on the selected configuration, communication interfaces include TCP/IP, RS485, RS232 and dry contacts. Monitoring functions can be configured for the project's remote management platform.
Yes. The product configuration supports AC, DC and signal lightning protection, with B+C surge protection available according to the project configuration.
Yes. HAGOE provides OEM/ODM and engineering customization covering cabinet structure, electrical configuration, monitoring interfaces, branding, packaging and related technical documentation.
The supplied configuration specifies IP55 protection for the outdoor cabinet.
Yes. HAGOE provides English installation manuals, remote technical guidance and commissioning support. On-site support can also be arranged for larger or more complex projects according to the project scope.
Depending on the order and project requirements, HAGOE can provide product manuals, electrical drawings, inspection reports, certification documents, packing lists and other technical documentation required for project delivery.
Yes. HAGOE does not impose a universal mandatory MOQ. One unit can be ordered for standard products, while customized projects are evaluated according to the required configuration.
HAGOE is a manufacturer based in Wenzhou, Zhejiang, China, established in 2008. The company integrates R&D, manufacturing, testing, sales and export services and operates its own production facilities.
For standard in-stock products, shipment can be arranged as quickly as 3 working days after payment, subject to stock availability. Standard batch orders generally require 7–10 working days, while customized orders typically require 15–30 working days, depending on configuration and project complexity.
