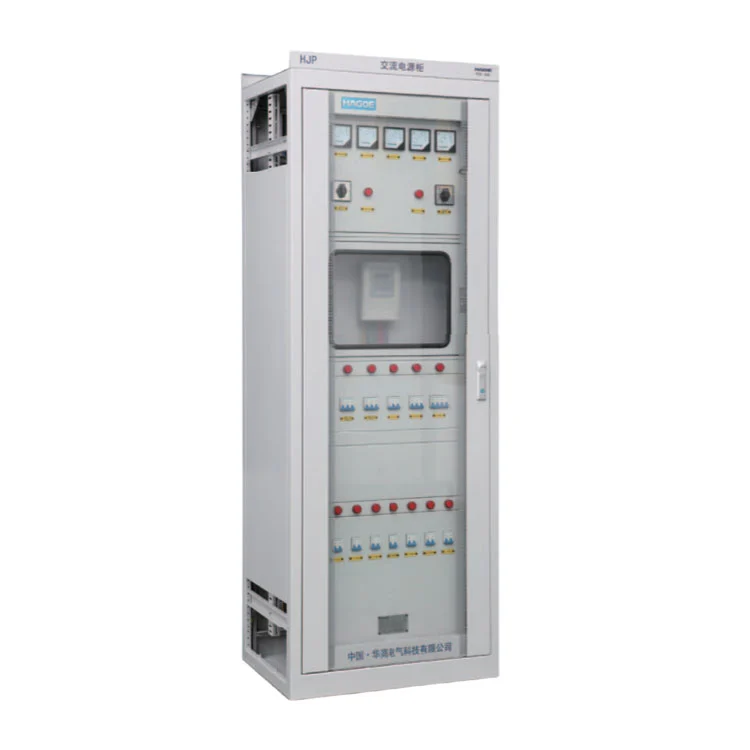

The AC Power Supply Panel can be configured with dual AC incoming supplies where the project requires an alternative source for auxiliary loads. Automatic or manual transfer can be selected according to the control scheme, with mechanical and electrical interlocking incorporated where required to prevent an inappropriate simultaneous closing condition. The transfer logic, incoming rating, and control arrangement are confirmed according to the project electrical drawings and load requirements.
The outgoing section can be equipped with circuit breakers selected according to the load characteristics and protection requirements. This allows separate branch protection for auxiliary loads such as protection equipment, automation systems, communication equipment, and lighting. Incoming capacity, breaker ratings, number of outgoing circuits, and breaking capacity should be selected according to the project load schedule and available short-circuit parameters rather than using a fixed configuration.
Depending on the monitoring requirements, the HJP Series can incorporate digital meters for measuring three-phase voltage, current, frequency, and power factor. For projects requiring connection to a supervisory monitoring system, RS485 and MODBUS communication can be configured with compatible monitoring devices. The available communication functions depend on the selected meter and overall system architecture.
The HJP Series ac power distribution panel can be configured with surge protection devices, alarm indicators, and related protective components according to the project electrical design. The final protection arrangement should be determined based on system voltage, grounding configuration, load characteristics, and applicable local standards to ensure compatibility between the protection devices and the electrical system.
| Technical Parameter | Specification |
|---|---|
| Rated Voltage | 380/220 VAC ±20% |
| Rated Frequency | 50 Hz / 60 Hz |
| Number of AC Input Lines | 1 or 2 |
| Insulation Voltage | 1000 V |
| Rated Short-Time Withstand Current | >40 kA (RMS) |
| Rated Peak Withstand Current | 100 kA |
| Protection Grade | IP30 or above |
| Panel Structure | PK-10 type |
| Cabinet Dimensions (W × D × H) | 800 × 600 × 2260 mm or 2360 mm |
AC Power Supply Panel selection should be based on the incoming supply arrangement, load capacity, outgoing circuits, protection requirements, and monitoring architecture. For substation auxiliary systems requiring an alternative source, dual incoming supplies with automatic transfer may be considered.
For general industrial distribution, the incoming and outgoing configuration can be selected according to the connected loads.
Before quotation, HAGOE can review the customer's single-line diagram, load schedule, rated voltage, incoming supply arrangement, number of outgoing circuits, cabinet dimensions, and monitoring requirements to establish the required configuration.

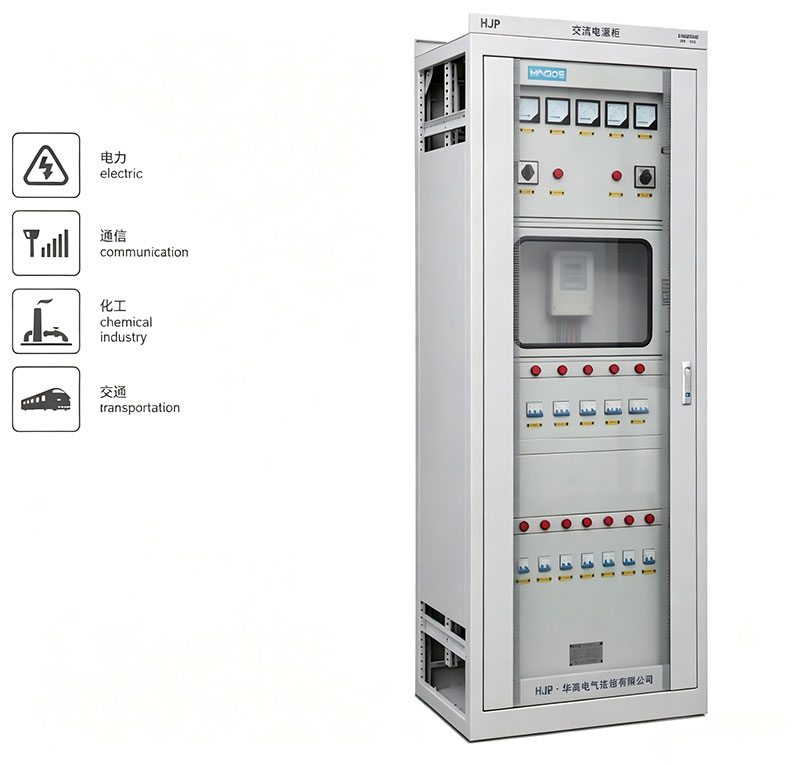

The HJP Series is designed for electrical and industrial applications requiring auxiliary AC power distribution.
In substations and power plants, it can supply station-service loads including protection, automation, communication, control, and lighting equipment.
In industrial manufacturing facilities, it can be used in control rooms, MCC rooms, and other low-voltage auxiliary distribution areas.
For overseas EPC projects, cabinet construction, electrical components, and monitoring functions can be adapted according to local electrical requirements and approved project drawings.
China HAGOE Electric is a qualified supplier to State Grid Corporation of China, China Southern Power Grid, and Guangdong Power Grid. The company's products have passed the relevant State Grid certifications and have been successfully selected through bidding projects organized by power grid systems. HAGOE Electric provides high-quality, stable, and reliable products for power grid reconstruction, upgrading, and electricity security.
HAGOE provides project-based customization for EPC contractors, overseas distributors, electrical system integrators, and industrial users. Depending on the confirmed technical requirements, the HJP Series can be adapted in terms of cabinet dimensions, incoming arrangement, outgoing circuits, breakers and meters, monitoring modules, communication interfaces, busbar configuration, cable entry, and OEM nameplates.
For overseas projects, HAGOE can also coordinate technical documentation, export packaging, multilingual labeling, and international logistics support according to the agreed supply scope.

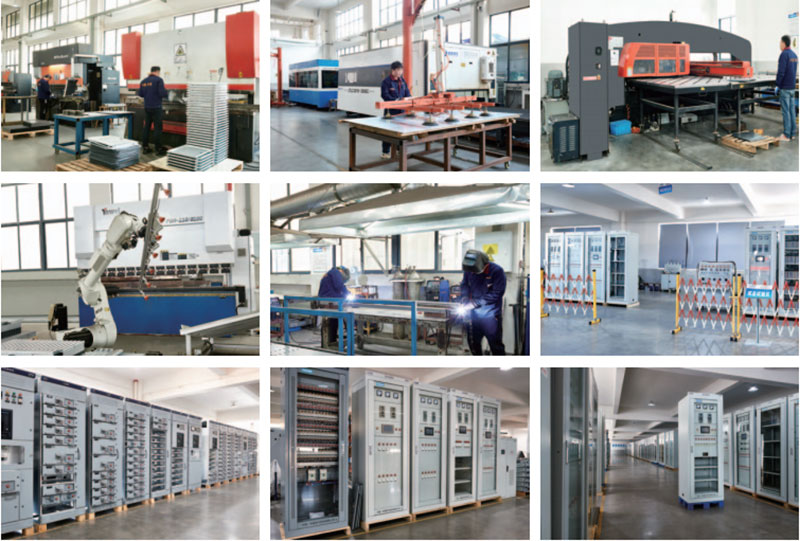

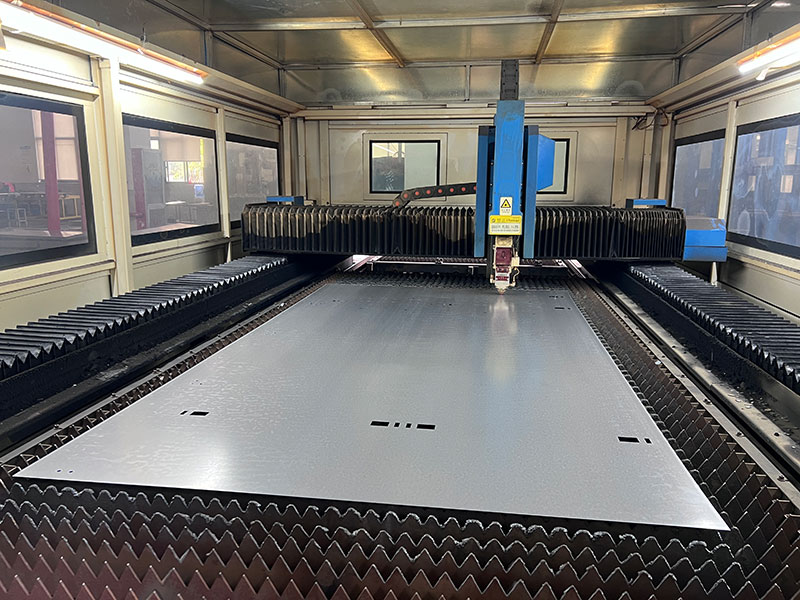

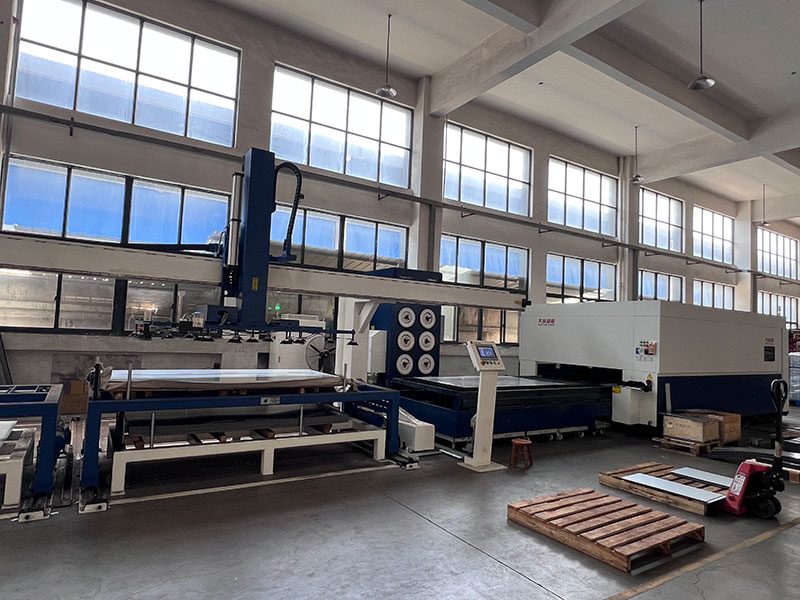

HAGOE integrates R&D, sheet-metal fabrication, electrical assembly, and product testing within its manufacturing system. The production base is equipped with TRUMPF laser cutting machines, AMADA CNC bending machines, CNC turret punching machines, and precision shearing equipment for electrical cabinet fabrication. Assembly processes cover cabinet construction, busbar processing, electrical wiring, and component installation, followed by applicable electrical performance inspections before shipment.
For the HJP Series AC Power Supply Panel, quality control focuses on cabinet construction, busbar and wiring work, component installation, protection functions, and electrical performance. HAGOE also operates intelligent aging test systems, electrical performance testing equipment, EMC testing systems, high- and low-temperature humid-heat test chambers, and IP testing equipment. Appropriate testing procedures are applied according to the product type and project requirements.

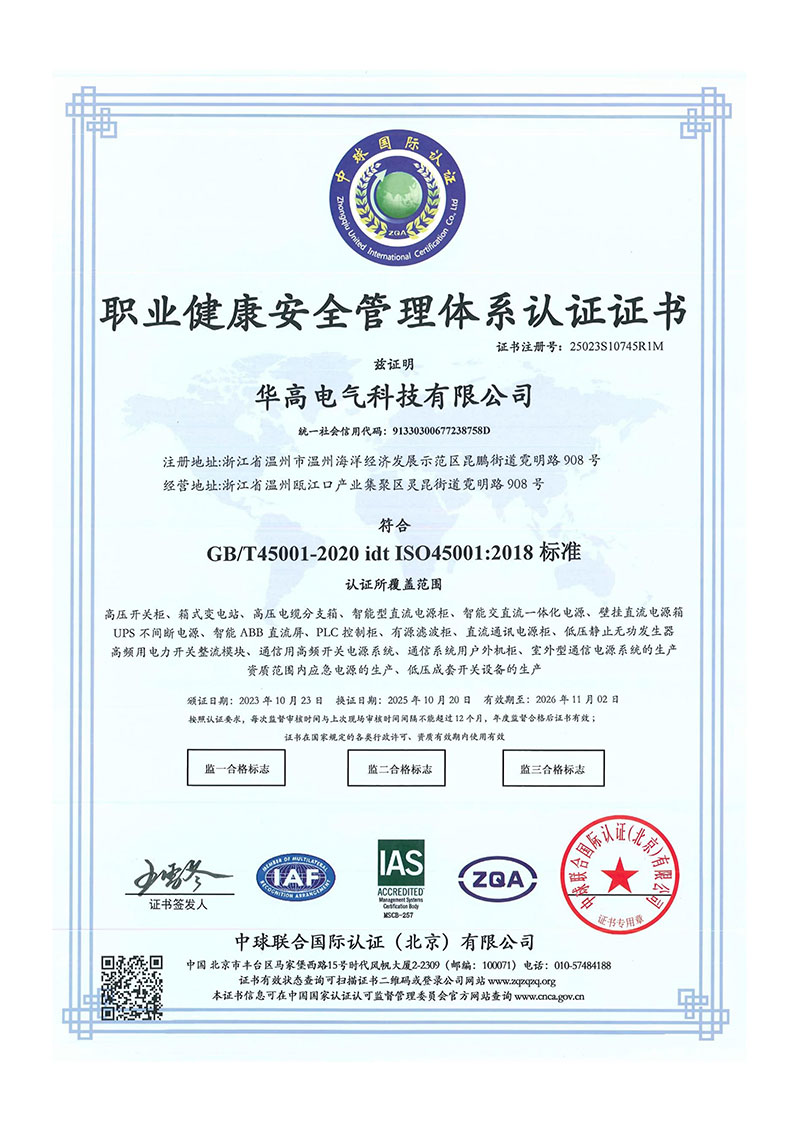

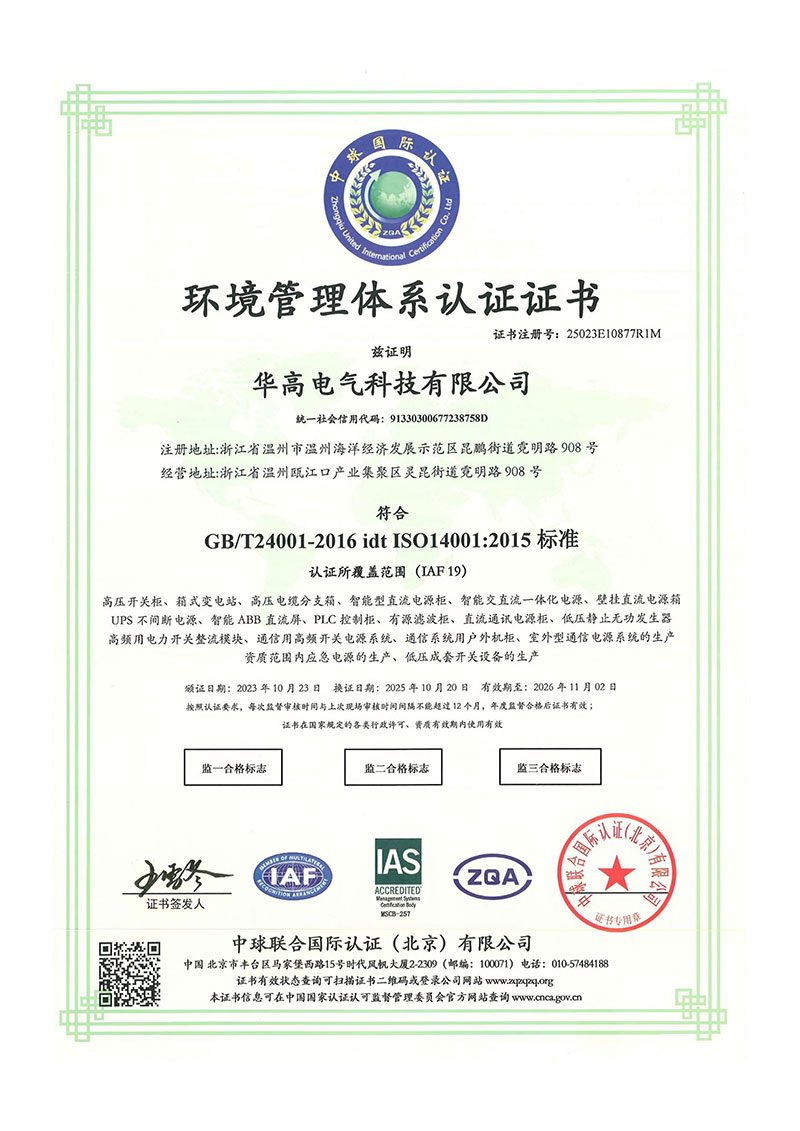

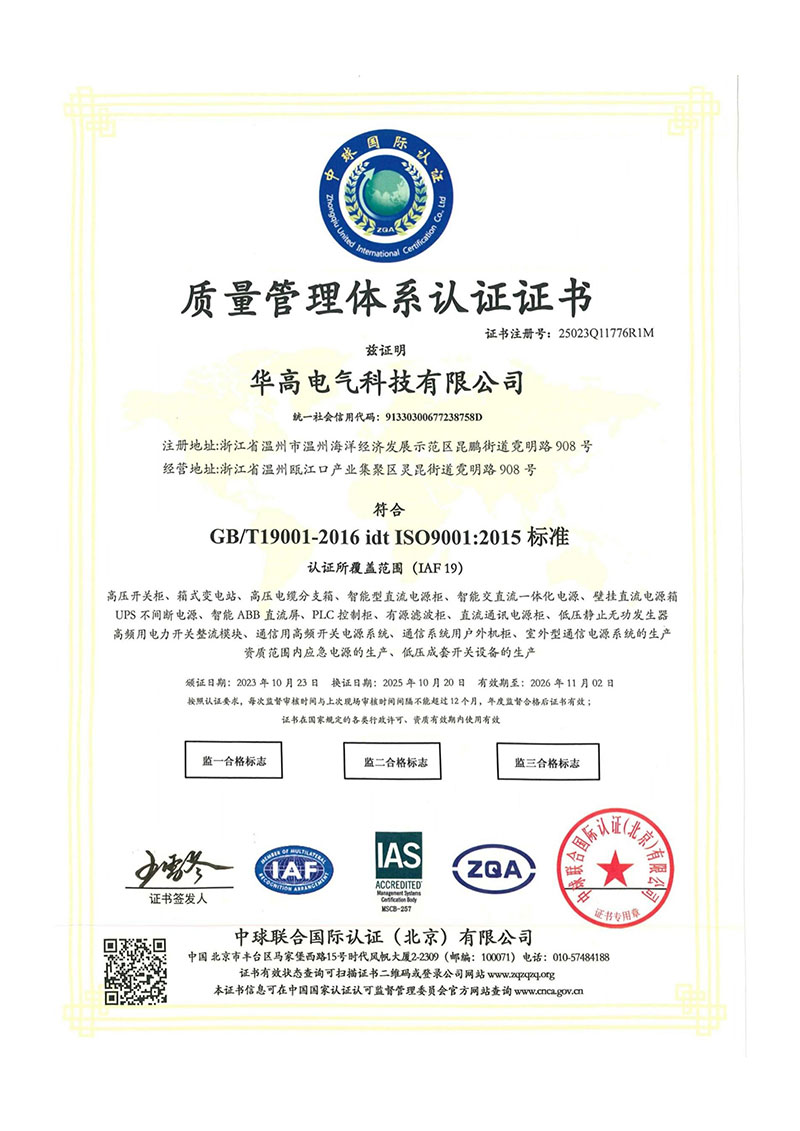

HAGOE's manufacturing management systems are certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018. The ISO 9001 Quality Management System certificate is No. 25023Q11776R1M, the ISO 14001 Environmental Management System certificate is No. 25023E10877R1M, and the ISO 45001 Occupational Health and Safety Management System certificate is No. 25023S10745R1M.
The certified scope covers products including DC power supply cabinets, AC/DC integrated power systems, UPS systems, switchgear, PLC control cabinets, communication power systems, and low-voltage switchgear assemblies.
For specific HJP configurations, applicable documentation such as CCC, CE, CB, RoHS, or product testing reports can be provided according to the actual configuration and destination-market requirements.
HAGOE prepares export packaging according to the cabinet dimensions, transportation method, and destination requirements. Standard protection may include stretch film, corner protection, and wooden crates, with the final packaging structure confirmed according to the order and shipping conditions.
Overseas orders can be supplied under FOB or CIF terms, together with export documents, technical manuals, wiring diagrams, and multilingual product labels. Partial CKD supply can also be discussed for projects requiring overseas assembly where the technical scope permits.
Final lead time should be confirmed after drawings, technical specifications, component configuration, and order quantity have been finalized.
HAGOE Electric Technology Co., Ltd. was established in 2008 and has developed long-term capabilities in the R&D and manufacture of power supply systems, low-voltage distribution equipment, industrial automation equipment, and new energy electrical products.
The company holds 34 authorized national patents, operates production equipment including TRUMPF laser cutting and AMADA CNC bending machines, and maintains testing capabilities covering electrical performance, EMC, aging, environmental conditions, and IP protection.
Its management systems are certified to ISO 9001, ISO 14001, and ISO 45001, while its products and services reach customers in China and more than 30 countries and regions overseas.
For EPC contractors, distributors, and industrial users sourcing HJP Series AC Power Supply Panels, HAGOE can provide an integrated supply process covering technical configuration, product customization, manufacturing, quality inspection, and export delivery.
Product-specific performance, certification, and project references can be verified according to the actual configuration and supporting technical documentation.
The HJP Series AC Power Supply Panel is designed for auxiliary AC power distribution in substations, power plants, industrial facilities, control rooms, and other electrical infrastructure. It can supply power to relay protection, automation, communication, lighting, and other station-service loads.
Yes. The HJP Series can be configured with dual AC incoming supplies for applications requiring an alternative power source. Automatic or manual transfer can be selected according to the project electrical scheme, with the transfer logic confirmed during technical design.
The standard configuration is designed for AC 380V/220V, 50Hz low-voltage systems. A 60Hz configuration can also be provided according to project requirements and the selected electrical components.
Yes. HAGOE provides project-based customization for EPC contractors, distributors, system integrators, and industrial users. Cabinet dimensions, incoming supply arrangements, outgoing circuits, breakers, meters, monitoring modules, communication interfaces, cable entry, busbar configuration, and OEM nameplates can be customized according to the approved technical requirements.
The panel can be configured with digital monitoring devices for voltage, current, frequency, and power factor. Where required, RS485/MODBUS communication can be incorporated for connection with a supervisory monitoring system. The final communication configuration depends on the selected monitoring equipment and system architecture.
For accurate configuration and quotation, customers should provide the single-line diagram, load schedule, rated voltage, incoming power arrangement, number of outgoing circuits, cabinet dimensions, monitoring requirements, applicable standards, and order quantity. For EPC projects, the approved electrical drawings and technical specifications are particularly useful.
Yes. Depending on the project scope, HAGOE can provide product specifications, wiring diagrams, technical manuals, inspection records, test documentation, and export documents. The documentation package can be confirmed before production.
HAGOE's manufacturing management systems are certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018. Depending on the actual product configuration and destination market, applicable CCC, CE, CB, RoHS, or product testing documentation can also be provided where available.
Yes. HAGOE supports overseas EPC projects with technical configuration, OEM customization, manufacturing, quality documentation, export packaging, logistics coordination, and technical support. According to company records, HAGOE's products and services have been extended to more than 30 countries and regions.
HAGOE integrates sheet-metal fabrication, electrical assembly, and product testing within its manufacturing system. Its production facilities include TRUMPF laser cutting machines, AMADA CNC bending machines, CNC turret punching machines, and electrical performance testing equipment. Quality control covers cabinet construction, component installation, wiring, busbar work, protection functions, and applicable electrical performance tests.
Yes. HAGOE can support OEM branding and project-specific configurations, including nameplates, product labels, documentation, cabinet specifications, and selected electrical components. OEM requirements should be confirmed together with the technical specification before production.
The production lead time depends on the cabinet quantity, electrical configuration, component selection, customization requirements, and drawing approval. A confirmed delivery schedule can be provided after the technical specification, drawings, and purchase order are finalized.
