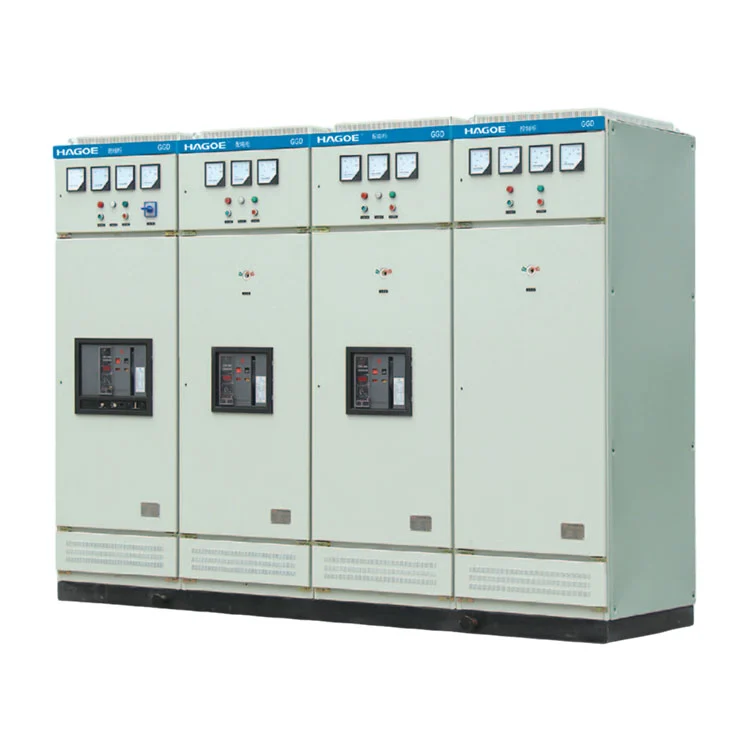

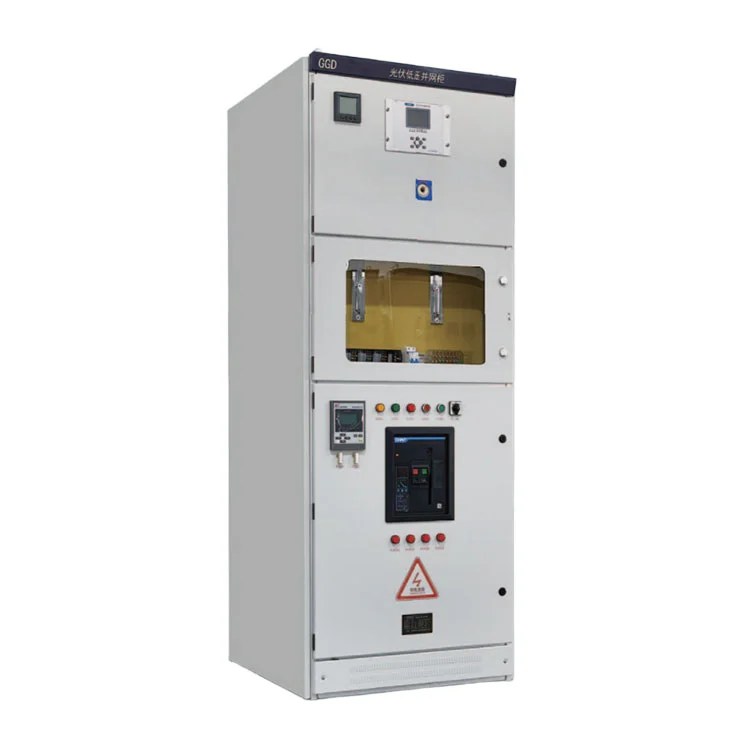

GGD is not simply a metal enclosure. It is a low-voltage switchgear assembly containing circuit breakers, busbars, protection devices, measuring instruments and control components.
In a typical distribution system, power is stepped down through a transformer before entering the low-voltage switchgear. The GGD Low Voltage Switchgear receives power through the main incoming circuit and distributes it to lighting, motors, production equipment and other low-voltage loads through individual feeder circuits.
The basic power path can be represented as:
Transformer → Main Incoming Circuit → Busbar System → Feeder Circuits → Electrical Loads
For this reason, switchgear selection should consider more than rated current. Prospective short-circuit current, load characteristics, number of outgoing circuits, busbar arrangement, protection coordination and installation conditions all affect the final configuration.
The main engineering value of the GGD Low Voltage Switchgear is to provide a structured and maintainable platform for low-voltage power distribution.
Based on the supplied product specifications, key characteristics include:
Different GGD models provide different rated short-circuit breaking current levels, allowing the switchgear to be selected according to the system fault level.
The cabinet and conductive system must withstand the thermal effects and electromagnetic forces generated during short-circuit conditions. The relevant parameters include rated short-time withstand current and rated peak withstand current.
Incoming, outgoing, load and distribution circuits can be configured according to project requirements.
The established cabinet architecture facilitates equipment installation, circuit inspection and subsequent maintenance.

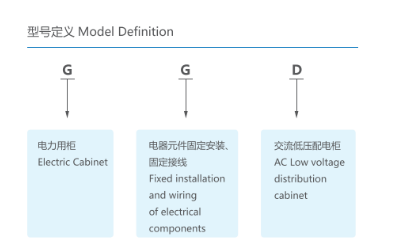

Different current ratings are available across GGD1, GGD2 and GGD3 configurations to match different distribution capacities.
The three GGD groups should not simply be viewed as different cabinet sizes. Their main differences are associated with rated current and short-circuit withstand capability.
| Model | Rated Voltage | Rated Current | Rated Short-Circuit Breaking Current | Rated Short-Time Withstand Current | Rated Peak Withstand Current |
|---|---|---|---|---|---|
| GGD1 | 380V | A: ≤1000A / B: 600(630)A / C: 400A | 15kA | 15kA | 30kA |
| GGD2 | 380V | A: ≤1500(1600)A / B: 1000A / C: 600A | 30kA | 30kA | 63kA |
| GGD3 | 380V | A: ≤3150A / B: 2500A / C: 2000A | 50kA | 50kA | 105kA |
Procurement Note: The final model should not be selected solely according to load current. The project short-circuit level, transformer capacity, protection coordination and feeder configuration should also be confirmed before ordering
In low-voltage switchgear selection, rated short-circuit breaking current, rated short-time withstand current and rated peak withstand current describe different aspects of fault performance.
Rated short-circuit breaking current relates to the switchgear's ability to interrupt a specified short-circuit current under defined conditions.
Rated short-time withstand current indicates the current that the equipment can withstand for a specified duration during a short-circuit event, particularly in relation to thermal stress.
Rated peak withstand current relates to the electromagnetic forces associated with the peak short-circuit current.
For this reason, these parameters should be matched against the calculated prospective short-circuit current of the project rather than selecting a cabinet simply according to its normal operating current.
GGD Low Voltage Switchgear can be configured according to the project's distribution topology.
Typical configurations include:
Connects the cabinet to the transformer or upstream low-voltage power source.
Provides independent feeder circuits for different areas or equipment.
Configured with appropriate switching, protection and control devices for motor applications.
Provides dedicated low-voltage circuits for lighting systems.
Capacitor compensation can be incorporated according to the project's power factor and reactive power requirements.
Voltage, current, power, energy and other monitoring functions can be incorporated according to project requirements.
According to the supplied product data, the GGD series is intended for the following typical operating conditions:
For high-altitude, high-humidity, highly corrosive, high-vibration or otherwise unusual environments, the actual site conditions should be confirmed during the technical inquiry stage so that the equipment can be appropriately configured.
GGD low-voltage switchgear is suitable for applications requiring centralized low-voltage power distribution and control, including:
Power Plants & Substations
For low-voltage distribution and auxiliary power systems.
Industrial Manufacturing
For production lines, machinery, pumps, fans and other industrial loads.
Mining & Heavy Industry
For industrial and mining power distribution systems.
Infrastructure Projects
For low-voltage distribution in buildings, municipal infrastructure and public facilities.
Renewable Energy Projects
As part of the AC low-voltage distribution section of renewable energy projects, subject to the overall system architecture.
Distribution Network Upgrades
For upgrading and expanding existing low-voltage distribution systems.
| Consideration | Basic Distribution Cabinet | GGD Low Voltage Switchgear |
|---|---|---|
| System application | Simple distribution | Industrial and power distribution |
| Current configuration | Usually limited | Multiple current levels |
| Short-circuit parameters | May be limited | Clearly specified |
| Electrical configuration | Relatively simple | Flexible |
| Protection configuration | Basic | Configurable according to system |
| Project suitability | Small/simple installations | Industrial and infrastructure projects |
| Engineering customization | Limited | Available according to project |
For simple residential or small-scale distribution, a basic distribution box may be sufficient. Industrial plants, substations and infrastructure projects typically require more clearly defined short-circuit capability, busbar capacity, feeder quantity, protection configuration and maintenance requirements.
This is where a GGD low-voltage switchgear assembly becomes more appropriate for engineered distribution applications.
GGD is a complete electrical assembly, meaning product quality depends not only on individual components but also on cabinet fabrication accuracy, busbar connections, conductor clearances, grounding continuity, component installation and complete-cabinet wiring.
HAGOE manages production under the ISO9001 quality management system and applies quality control from incoming material and component inspection through complete-cabinet testing.
A typical manufacturing process includes:
Incoming Inspection → Sheet Metal Processing → Cabinet Assembly → Busbar Installation → Component Installation → Wiring → Electrical Inspection → Functional Testing → Final Inspection
For engineered projects, HAGOE can provide technical documentation, inspection records, certification documents, wiring diagrams and installation-related documents according to procurement requirements.
GGD low-voltage switchgear is mainly used for AC low-voltage power distribution, lighting, control and protection in power plants, substations, industrial facilities, mining enterprises and infrastructure projects.
Selection should be based on rated current, prospective short-circuit current, feeder requirements and system configuration.
Yes. HAGOE can customize electrical configurations according to incoming circuits, outgoing feeders, metering, protection, compensation, control requirements and installation dimensions.
The supplied standard operating conditions are primarily intended for typical installations. Outdoor use requires confirmation of enclosure protection, temperature, humidity, solar radiation and other environmental requirements before configuration.
